Rental Equipment Category
Cyclonic and gravity sand separators rated up to 15,000 PSI, engineered to remove damaging sand, proppant, and formation solids during flowback, well testing, and completion operations.
The problems we solve
Uncontrolled sand and proppant during initial flowback and high-velocity production cause erosion, plugging, and equipment failure. Our sand traps and knockouts act as the first line of defense at the wellhead.
Flowback & High-Velocity Production
Uncontrolled sand and proppant during initial flowback and high-velocity production erode and plug separators, chokes, meters, and valves, and compromise data accuracy.
Sand separators and sand knockouts staged as the first line of defense at the wellhead, capturing solids before they reach downstream equipment.
High-Efficiency Solids Removal
Fine formation sand and proppant can pass right through equipment that isn't built for high-efficiency separation, leaving downstream gear exposed.
Cyclonic sand separators using high-velocity rotational flow to remove 100% of 100-mesh sand and up to 97% of 200-mesh sand.
Extreme Completion Pressure
Extreme completion environments push solids-handling equipment past standard pressure ratings.
A high-pressure sand knockout rated to 15,000 PSI and hydro-tested to 22,500 PSI, alongside gravity SKO configurations from 3,000 to 7,500 PSI.
Sour Service & HPHT Wells
Shale plays and HPHT wells with sour service demand solids-handling equipment that can survive corrosive H2S conditions, not just high pressure.
A compact cyclonic sand knockout specified for sour service.
Prequalified and compliant
ISNetworld Member Contractor
American Petroleum Institute
Compliance VerifiedWhy Tiger
Uncontrolled sand and proppant cause severe erosion, plugging, and equipment failure. Our units act as the first line of defense at the wellhead, capturing solids before they reach downstream equipment.

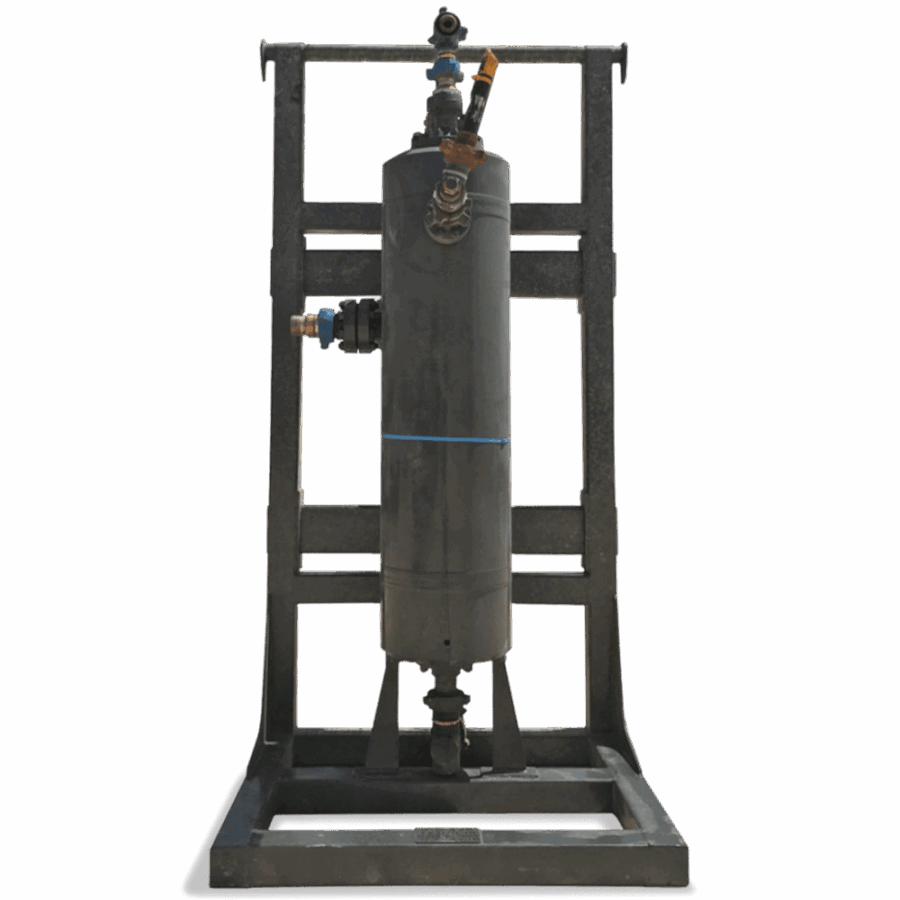

Centrifugal force delivers high-efficiency solids removal, rated to 10,000 PSI.
A 15,000 PSI unit for extreme completion environments, hydro-tested to 22,500 PSI.

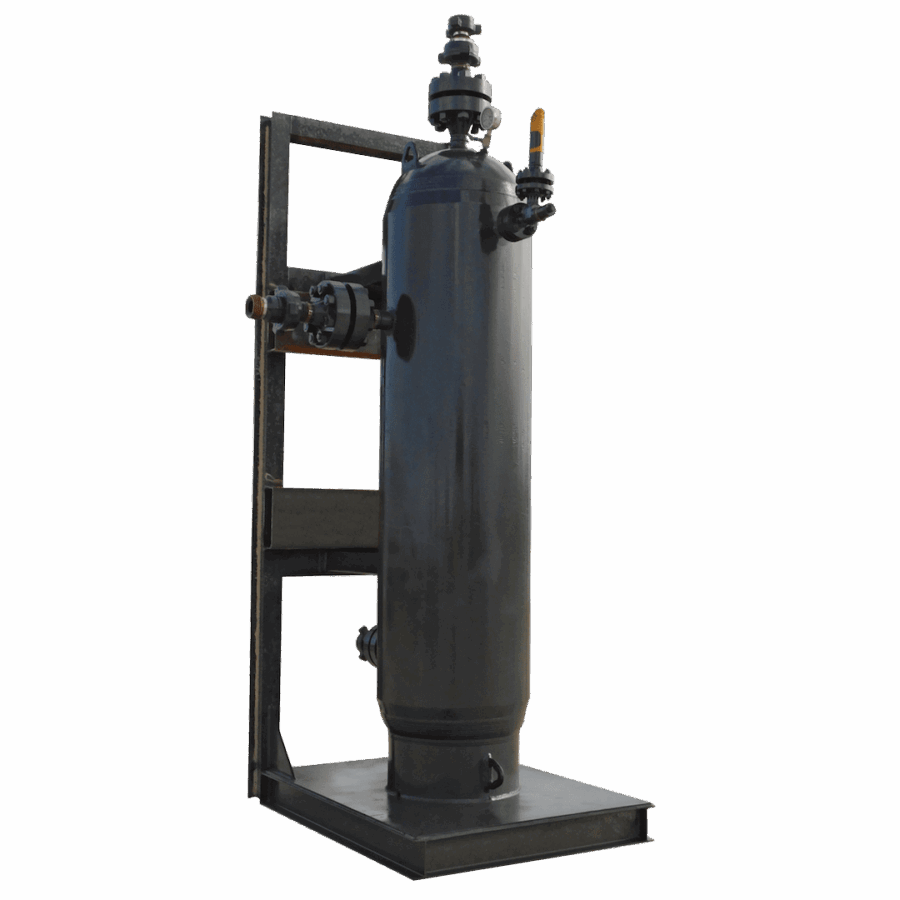

Proven vertical designs from 3,000 to 7,500 PSI for dependable solids settling and clean-out.
Units specified for H2S service in shale plays and HPHT wells.

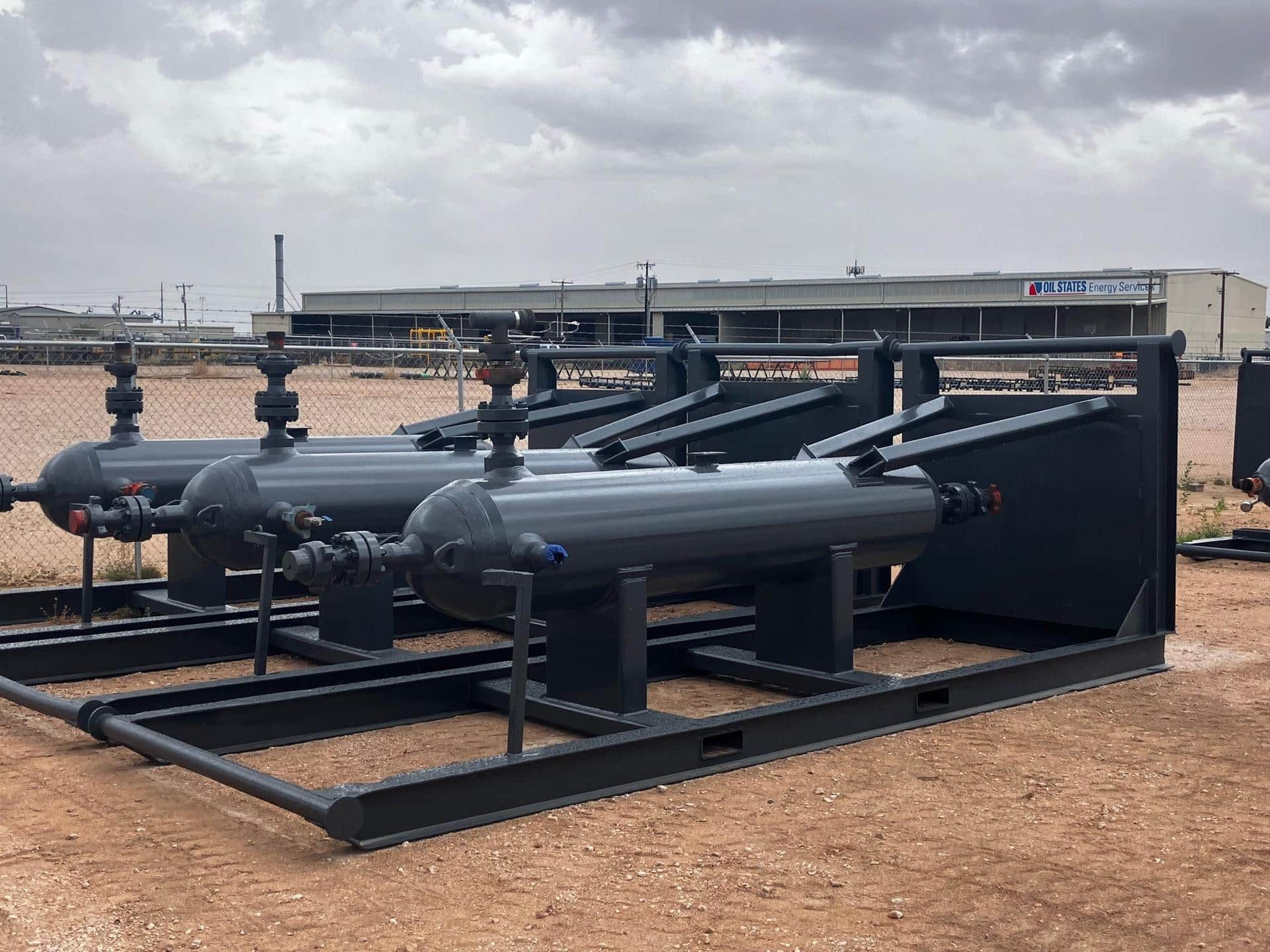

8 units in the Sand Traps fleet.

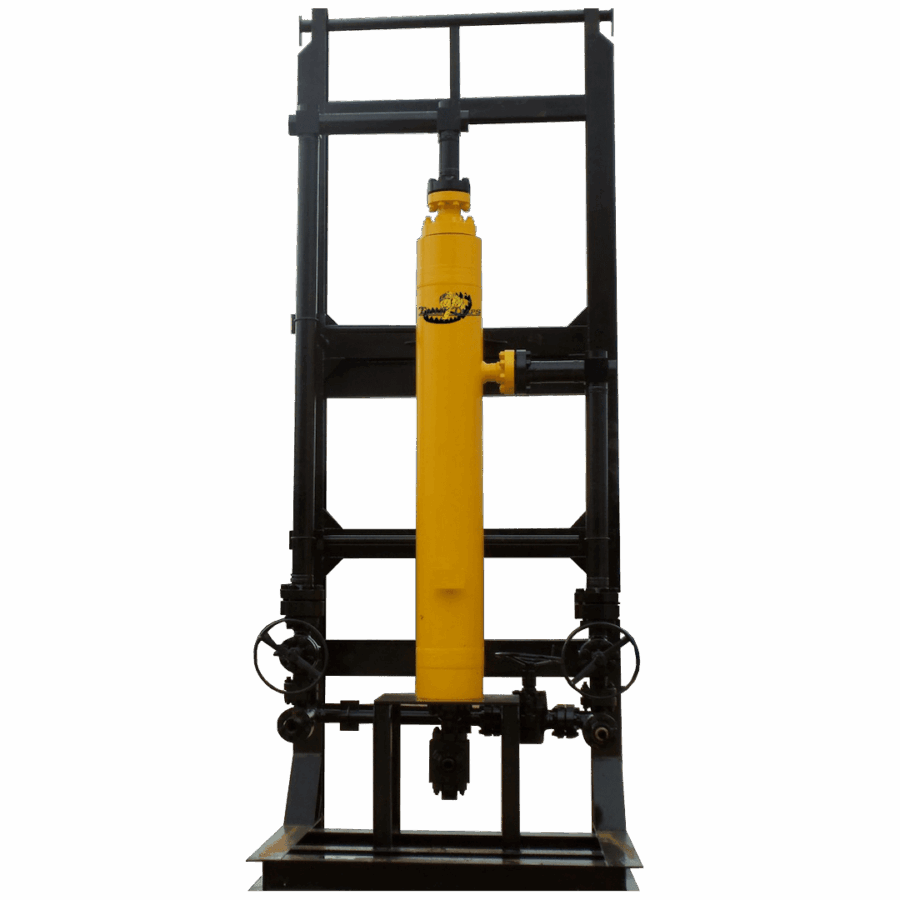

Our high pressure sand knockout is rated to 15,000 PSI and hydro-tested to 22,500 PSI, designed for extreme completion environments.
Cyclonic units use high velocity rotational flow and centrifugal force for high-efficiency solids removal. Gravity units use a vertical vessel to let solids settle out, with clean-out through hammer union connections.
Yes. Specific units are specified for sour service containing H2S. Tell dispatch the conditions on your job and we will confirm the right unit.
During initial flowback and high velocity production, uncontrolled sand and proppant cause erosion, plugging, and failure in separators, chokes, meters, and valves, and they compromise data accuracy. A sand trap captures solids first, which reduces non-productive time and extends asset life.

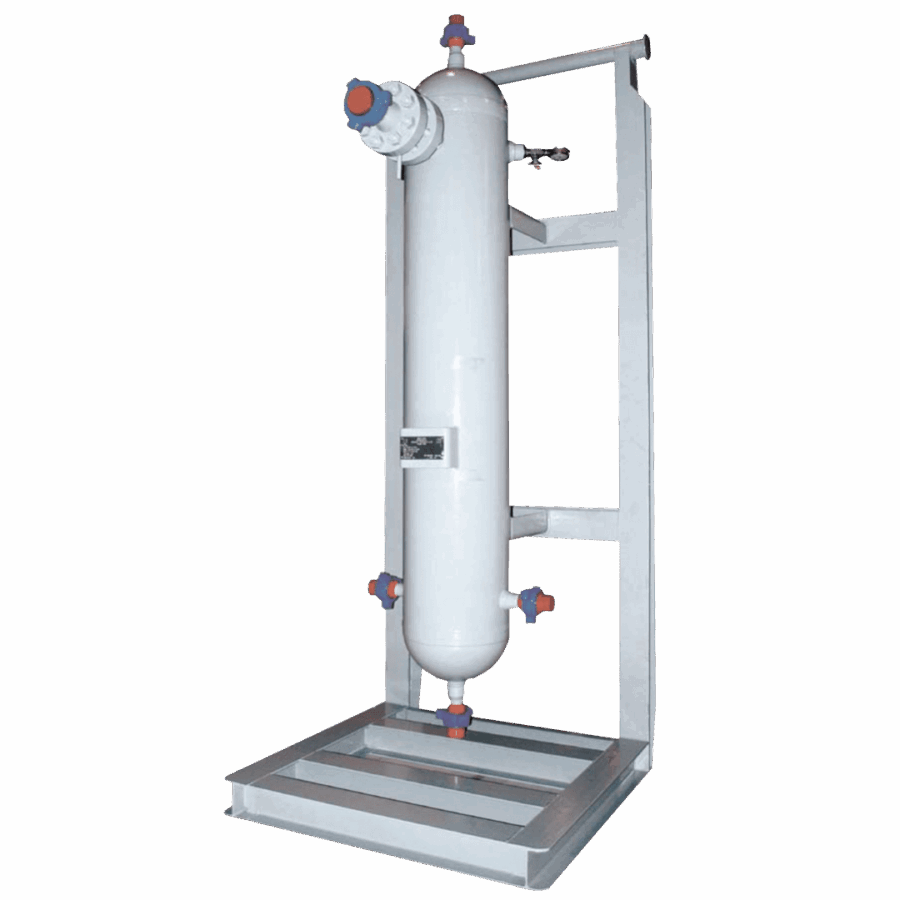

Configurations include a 24 in x 120 in cyclonic separator rated to 10,000 PSI, a 24 in x 90 in compact cyclonic SKO rated to 10,000 PSI for HPHT service, a gravity L-skid SKO available at 3,000, 5,000 and 7,500 PSI, and a 5,800 PSI vertical sand separator with 2 in hammer union clean-out.
Angled internal baffles for improved separation, L-skid frames for safe and efficient lifting, integrated 3 in 10K adjustable chokes on the dump lines, and clean-out and maintenance access designed to be worked in the field.
Tell us what you need and our dispatch team will follow up with a quote. We answer 24/7.
